Remanufactured Assembly

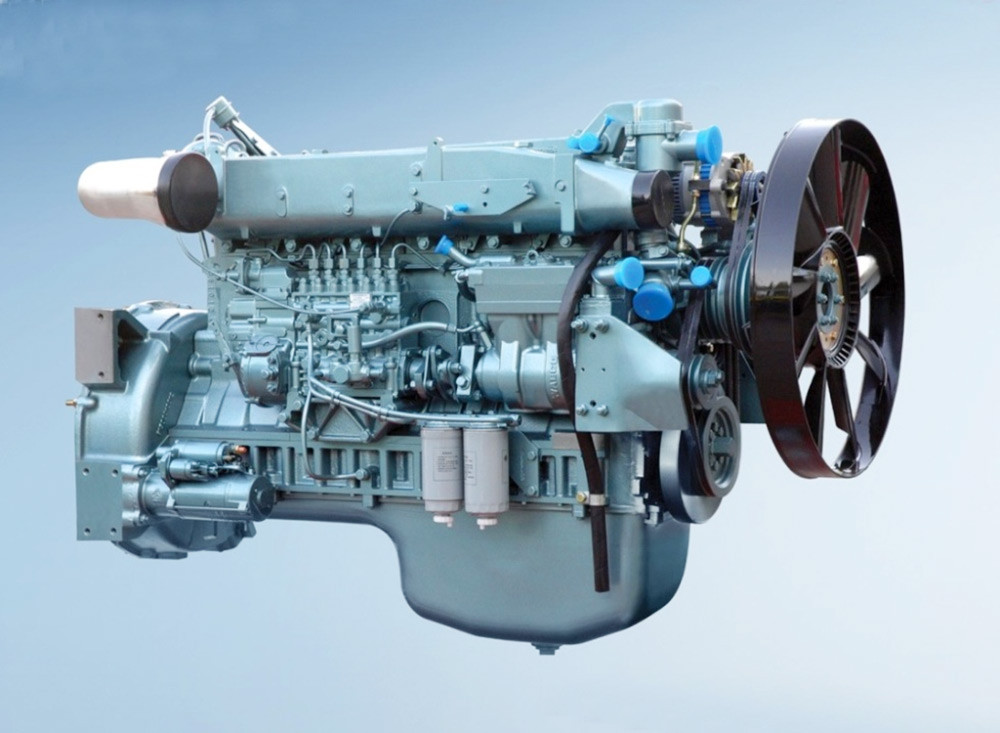

Engine Assembly

- Widened cylinder block to reduce vibration and extend service life
- Reasonably matched turbocharger with bypass valve and PS8500 pump, greatly improving engine power performance and fuel economy
- Equipped with electric heating
- WD615.47 water-cooled, in-line six-cylinder, four-stroke, direct injection turbocharged engine
- Rated power: 273kW (371PS) / 2200rpm
- Maximum torque: 1500Nm / 1100～1600rpm
- Displacement: 9.726L

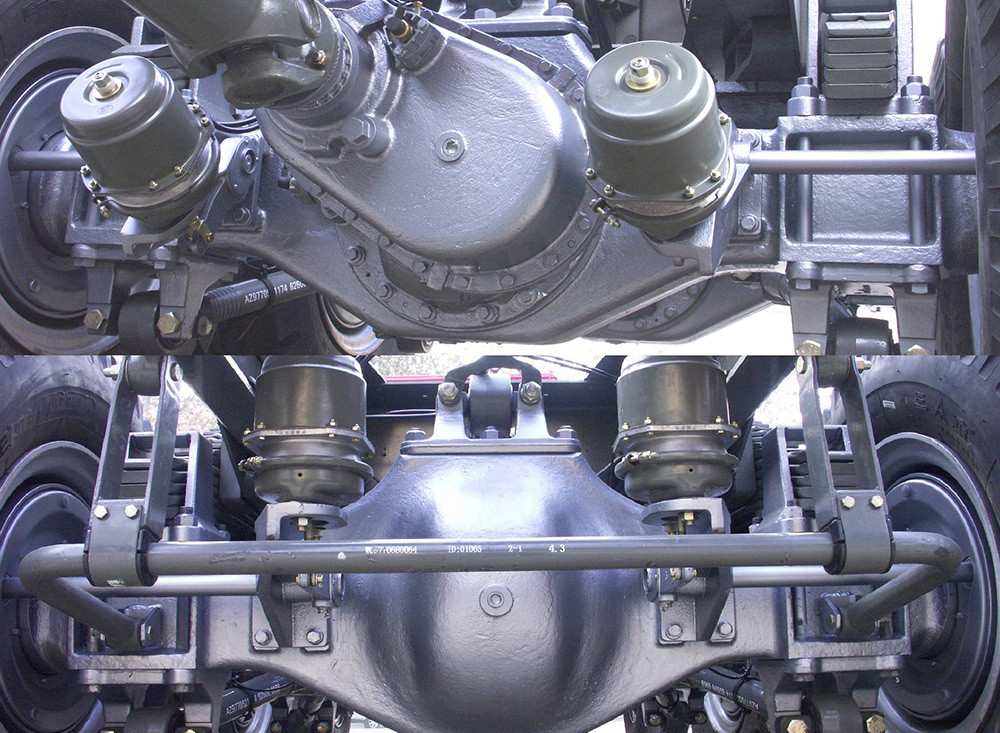

Axle Assembly

• Two-stage reduction drive axle with large wheel hub reducer
• Reinforced cast axle housing
• φ500×235 extra-wide cast brake shoe
• Forced lubrication + splash lubrication

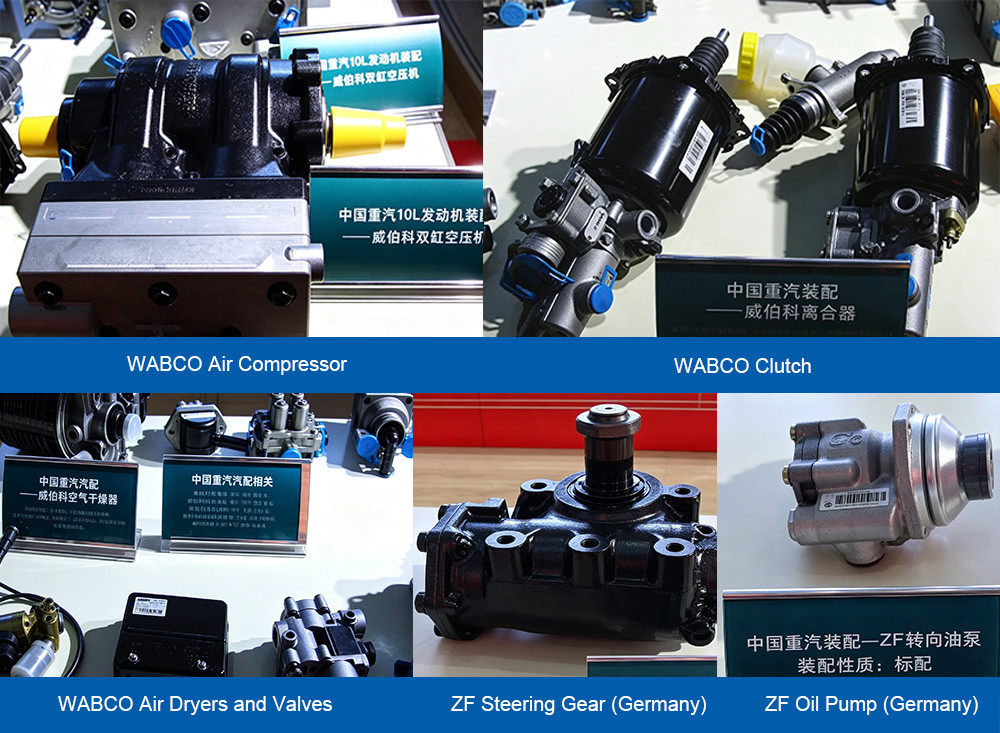

Introduction to Key Assemblies

German ZF steering gears and oil pumps; WABCO air compressors, ABS systems and full-vehicle brake valves; German VOSS brake fittings; Mann+Hummel fuel filter systems and air filters; VDO instruments and electrical control modules.

Starting from the 2010 version, WABCO clutch master cylinders and slave cylinders are standard equipment. German Behr intercoolers and radiators; German TMD (TMD Friction) disc brake pads are adopted to completely eliminate brake shudder.
